KCP Greece

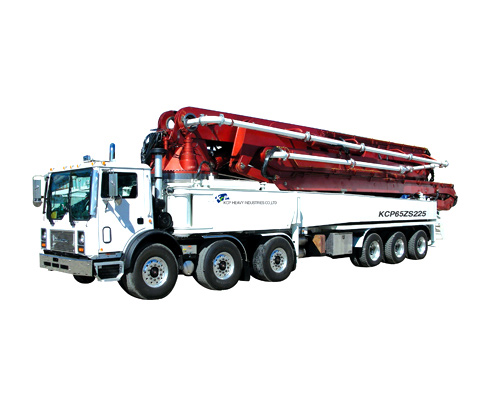

KCP65ZS225

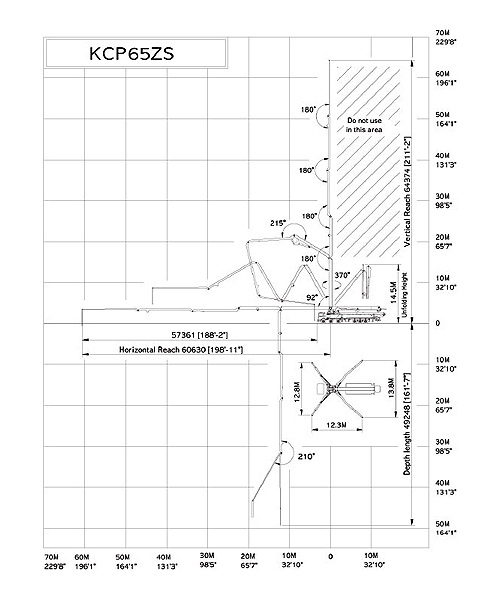

Working Diagram

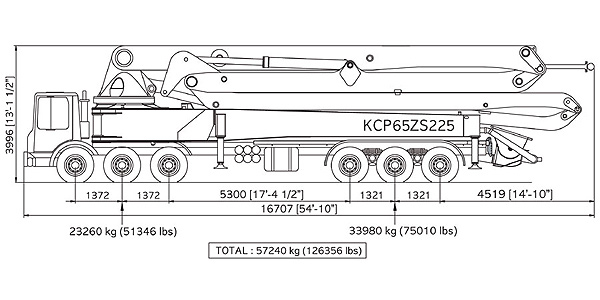

General Dimensions
Boom specifications
Vertical reach 64.4 M (211' 2")
Horizontal reach 60.6 M (198' 11")
Reach from front of truck 57.4 M (188' 2")
Unfolding height 14.5 M (47' 7")
Section articulation 92° / 180° / 215° / 180° / 210°
Rotation 370°
Delivery line 125 mm (5")
Proportional boom Yes
End hose length 4 M (13')
Outrigger spread-front 12.8 M (41' 11")
Outrigger spread-rear 13.8 M (45' 4")
Max. outrigger weight 65000kg (143500 lbs)
Pump specifications
Maximum output 225 m2/h (300 yd3/h)
Concrete cylinder Ø280 X 2100mm (11" X 83")
Stroke per minute 29
Concrete pressure 87.5 bar (1270 psi)
Hopper capacity 0.6 m2 (21 ft3)
S-tube Ø220 X Ø180 (9" X 7")
Hydraulic pump Rexroth A20VLO190
Cycling system Hydraulic with manual overrides
Max aggregate size 60 mm (2 1/2")
