KCP Greece

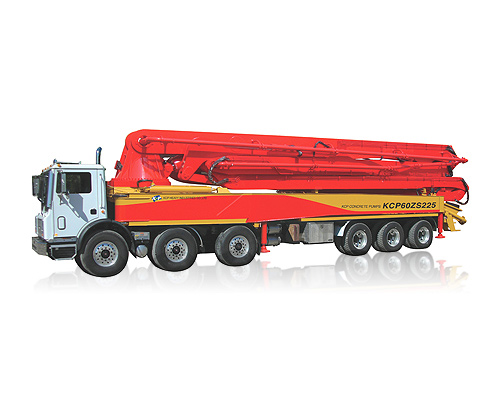

KCP60ZS225

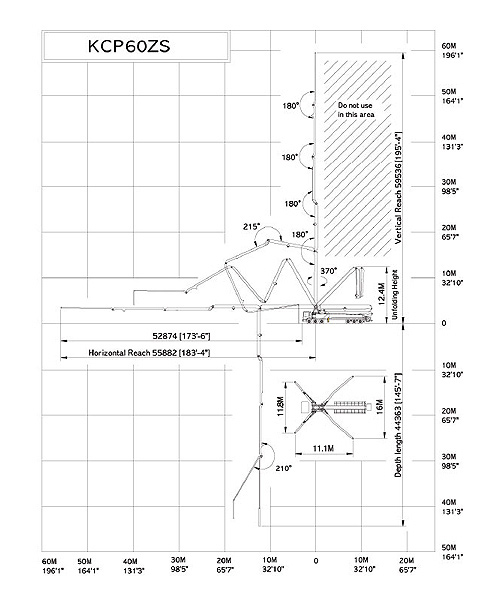

Working Diagram

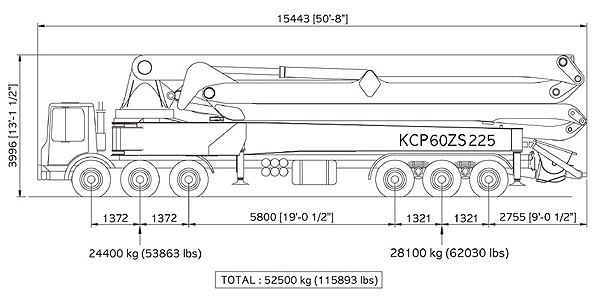

General Dimensions
Boom specifications
Vertical reach 59.5 M (195' 4")
Horizontal reach 55.9 M (183' 4")
Reach from front of truck 52.9 M (173' 6")
Unfolding height 12.4 M (40' 10")
Section articulation 92° / 180° / 215° / 180° / 210°
Rotation 370°
Delivery line 125 mm (5")
Proportional boom Yes
End hose length 4 M (13')
Outrigger spread-front 11.8 M (38' 9")
Outrigger spread-rear 16 M (52' 8")
Max. outrigger weight 45000kg (99340 lbs)
Pump specifications
Maximum output 225 m2/h (300 yd3/h)
Concrete cylinder Ø280 X 2100mm (11" X 83")
Stroke per minute 29
Concrete pressure 87.5 bar (1270 psi)
Hopper capacity 0.6 m2 (21 ft3)
S-tube Ø220 X Ø180 (9" X 7")
Hydraulic pump Rexroth A20VLO190
Cycling system Hydraulic with manual overrides
Max aggregate size 60 mm (2 1/2")
