KCP Greece

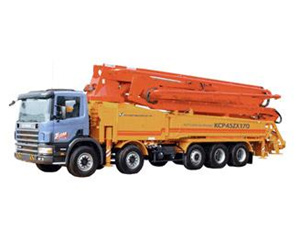

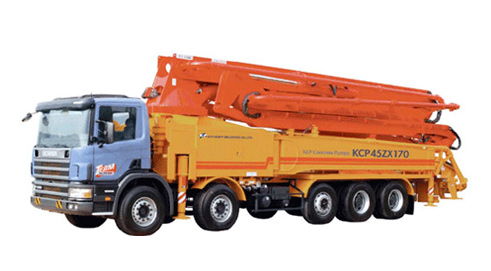

KCP45ZX170

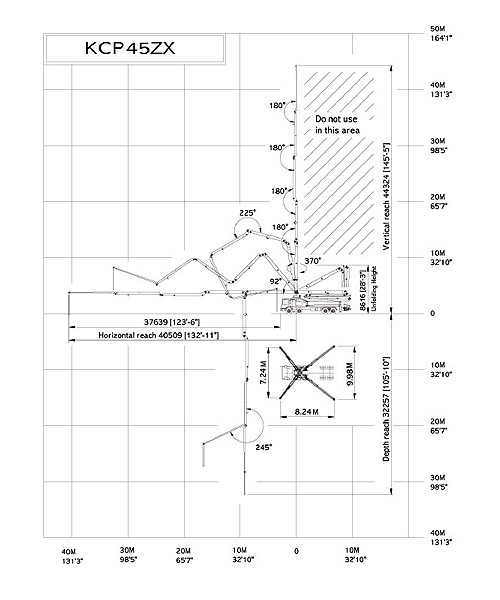

Working Diagram

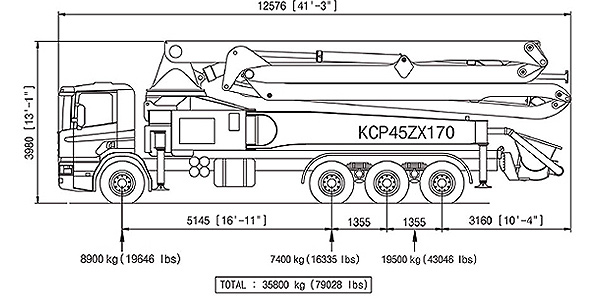

General Dimensions
Boom specifications
Vertical reach 44.3 M (145' 5")
Horizontal reach 40.5 M (132' 11")
Reach from front of truck 37.6 M (123' 6")
Unfolding height 8.6 M (28' 3")
Section articulation 92° / 180° / 225° / 180° / 245°
Rotation 370°
Delivery line 125 mm (5")
Proportional boom Yes
End hose length 4 M (13')
Outrigger spread-front 7.24 M (19' 10")
Outrigger spread-rear 9.98 M (22' 6")
Max. outrigger weight 28000kg (61810 lbs)
Pump specifications
Maximum output 170 m2/h (222 yd3/h)
Concrete cylinder Ø230 X 2100mm (9" X 83")
Stroke per minute 32
Concrete pressure 72 bar (1044 psi)
Hopper capacity 0.6 m2 (21 ft3)
S-tube Ø200 X Ø180 (8" X 7")
Hydraulic pump Kawasaki K3V140DT (Rexroth A11VO260)
Cycling system Hydraulic with manual overrides
Max aggregate size 60 mm (2 1/2")
