KCP Greece

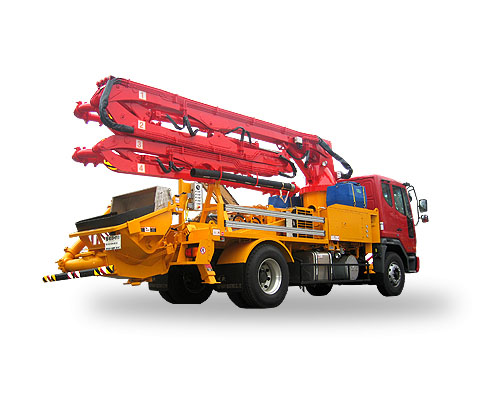

KCP24ZX100

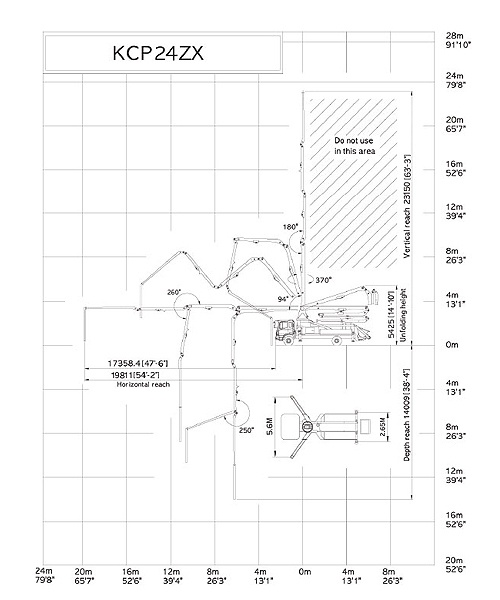

Working Diagram

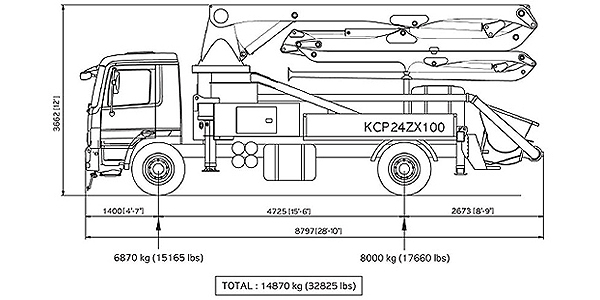

General Dimensions
Boom specifications
Vertical reach 23.2 M (63' 3")
Horizontal reach 19.8 M (54' 2")
Unfolding height 5.4 M (14' 10")
Section articulation 94° / 180° / 260° / 250°
Rotation 370°
Delivery line 125 mm (5")
Proportional boom Yes
End hose length 3 M (10')
Outrigger spread-front 5.6 M (15' 4")
Outrigger spread-rear 2.65 M (7' 3")
Max. outrigger weight 11000kg (24280 lbs)
Pump specifications
Maximum output 90 m2/h (118 yd3/h)
Concrete cylinder Ø230 X 1400mm (9" X 55")
Stroke per minute 28
Concrete pressure 69 bar (1000 psi)
Hopper capacity 0.6 m2 (21 ft3)
S-tube Ø230 X Ø180 (8" X 7")
Hydraulic pump Kawasaki K3V180S
Cycling system Hydraulic with manual overrides
Max aggregate size 60 mm (2 1/2")
