KCP Greece

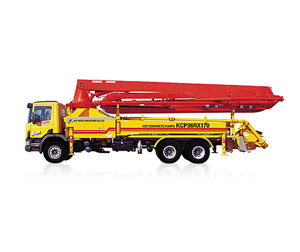

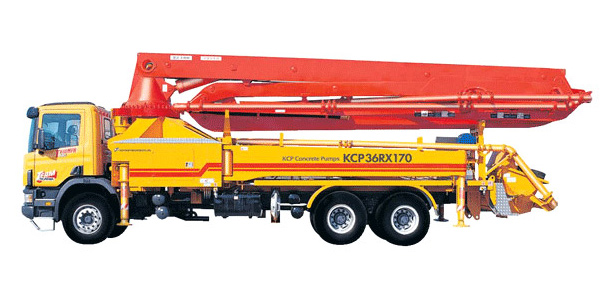

KCP36RX170

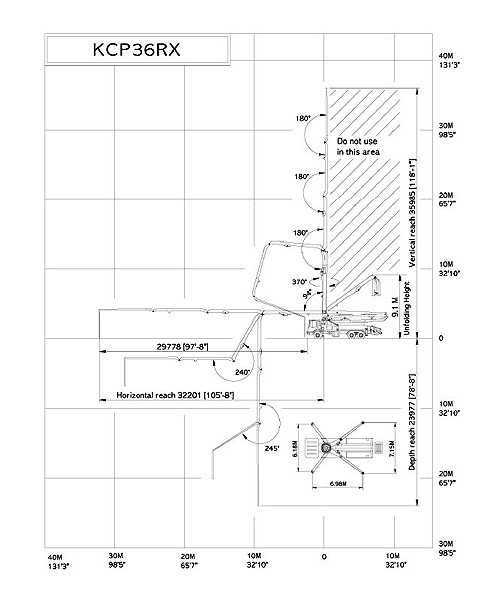

Working Diagram

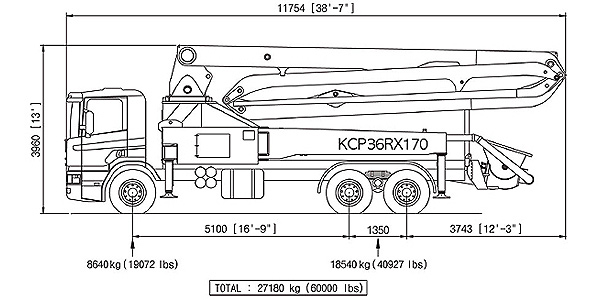

General Dimensions
Boom specifications
Vertical reach 36 M (118' 1 ")
Horizontal reach 32.2 M (105' 8")
Reach from front of truck 29.8 M (97' 8")
Unfolding height 9.1 M (29' 10")
Section articulation 90° / 180° / 240° / 245°
Rotation 370°
Delivery line 125 mm (5")
Proportional boom Yes
End hose length 4 M (13')
Outrigger spread-front 6.18 M (20' 3")
Outrigger spread-rear 7.15 M (23' 5")
Max. outrigger weight 20500kg (45250 lbs)
Pump specifications
Maximum output 170 m2/h (222 yd3/h)
Concrete cylinder Ø230 X 2100mm (9" X 83")
Stroke per minute 32
Concrete pressure 72 bar (1044 psi)
Hopper capacity 0.6 m2 (21 ft3)
S-tube Ø200 X Ø180 (8" X 7")
Hydraulic pump Kawasaki K3V140DT (Rexroth A11VO260)
Cycling system Hydraulic with manual overrides
Max aggregate size 60 mm (2 1/2")
