KCP Greece

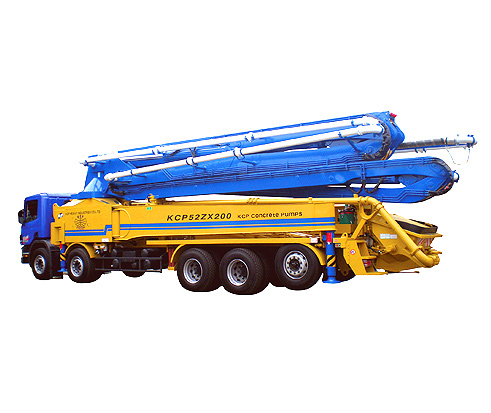

KCP52ZX200

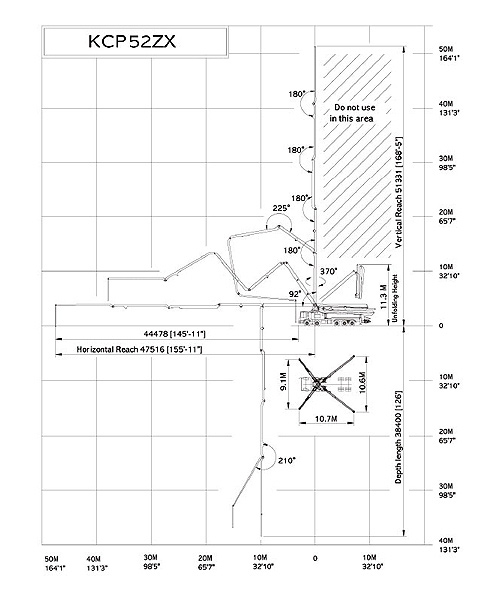

Working Diagram
General Dimensions
Boom specifications
Vertical reach 51.3 M (168' 5")
Horizontal reach 47.5 M (155' 11")
Reach from front of truck 44.5 M (145' 11")
Unfolding height 11.3 M (36' 11 ")
Section articulation 92° / 180° / 225° / 180° / 210°
Rotation 370°
Delivery line 125 mm (5")
Proportional boom Yes
End hose length 4 M (13')
Outrigger spread-front 9.1 M (29' 10 ")
Outrigger spread-rear 10.06 M (34' 10")
Max. outrigger weight 33500kg (73950 lbs)
Pump specifications
Maximum output 200 m2/h (261 yd3/h)
Concrete cylinder Ø280 X 2100mm (11" X 83")
Stroke per minute 25.6
Concrete pressure 87.5 bar (1270 psi)
Hopper capacity 0.6 m2 (21 ft3)
S-tube Ø220 X Ø180 (9" X 7")
Hydraulic pump Rexroth A20VLO190 (Kawasaki K3V180DT)
Cycling system Hydraulic with manual overrides
Max aggregate size 60 mm (2 1/2")
